Understanding Execution Graph API
Overview
The Execution Graph API provides a structured representation of a pipeline's execution in Harness, detailing the flow, dependencies, statuses, and outcomes of different tasks within a pipeline. This API enables users to retrieve execution details at various levels, including stages, steps, and specific nodes.
API to Get Execution Subgraph for Node Execution
The Execution Subgraph API provides detailed information about a specific node's execution in the pipeline.
API Endpoint
GET /executions/{executionId}/subgraph/{nodeExecutionId}
- executionId: The ID of the execution.
- nodeExecutionId: The ID of the node within the execution whose subgraph details are to be fetched.
For detailed documentation, refer to the Pipeline Execution Details API.
Execution Graph Components
Key Elements:
- Root Node: The entry point of the pipeline execution.
- Execution Nodes: Represents individual steps such as script execution, API calls, or deployments.
- Dependencies: Defines relationships between nodes, including sequential or parallel execution.
- Task Delegation: Assigns tasks to worker agents or delegates for execution.
- Status Tracking: Monitors execution states (Success, Failed, Running, etc.).
- Output Variables: Captures and stores data produced by execution steps.
- Logs: Stores detailed execution logs for debugging and analysis.
Example Execution Graph JSON
Below is an example of the JSON response representing the execution graph:
{
"status": "SUCCESS",
"data": {
"executionGraph": {
"rootNodeId": "HWbn_nVGSByRRgwtex3H2A",
"nodeMap": {
"ovKqIaGkQo2iRsKWgtameg": {
"uuid": "ovKqIaGkQo2iRsKWgtameg",
"setupId": "nfeEKsfVSYi9iJfDz2OY2Q",
"name": "ShellScript_2",
"identifier": "ShellScript_2",
"baseFqn": "pipeline.stages.custom_stage.spec.execution.steps.ShellScript_2",
"outcomes": {
"output": {
"outputVariables": {}
}
},
"stepParameters": {
"uuid": "nfeEKsfVSYi9iJfDz2OY2Q",
"identifier": "ShellScript_2",
"name": "ShellScript_2",
"timeout": "10m",
"type": "ShellScript",
"spec": {
"outputVariables": {},
"environmentVariables": {},
"shell": "Bash",
"source": {
"uuid": "oUbMpp0WTImNqk5B0RuqOg",
"type": "Inline",
"spec": {
"script": "echo \necho "
}
},
"executionTarget": {}
}
},
"startTs": 1738237072505,
"endTs": 1738237075169,
"stepType": "ShellScript",
"status": "Success",
"failureInfo": {
"message": "",
"failureTypeList": [],
"responseMessages": []
},
"skipInfo": null,
"nodeRunInfo": {
"whenCondition": "<+OnStageSuccess>",
"evaluatedCondition": true,
"expressions": []
},
"retryNodeMetadata": null,
"executableResponses": [
{
"task": {
"taskId": "H5kWcK_2TjGvqknkCmiGOw-DEL",
"taskCategory": "DELEGATE_TASK_V2",
"logKeys": [
"accountId:ACCOUNT_ID/orgId:ORG_ID/projectId:PROJECT_ID/pipelineId:output_variable/runSequence:1/level0:pipeline/level1:stages/level2:custom_stage/level3:spec/level4:execution/level5:steps/level6:ShellScript_2-commandUnit:Execute"
],
"units": [],
"taskName": "SHELL_SCRIPT_TASK_NG"
}
}
],
"unitProgresses": [
{
"unitName": "Execute",
"status": "SUCCESS",
"startTime": "1738237073847",
"endTime": "1738237073854"
}
],
"progressData": {
"unitProgresses": [
{
"unitName": "Execute",
"status": "SUCCESS",
"startTime": "1738237073847",
"endTime": "1738237073854"
}
]
},
"delegateInfoList": [
{
"id": "8MQ151-eSbGOhgEr6VBl_g",
"name": "harnessci-cd-ng-prod",
"taskId": "H5kWcK_2TjGvqknkCmiGOw-DEL",
"taskName": "SHELL_SCRIPT_TASK_NG"
}
],
"interruptHistories": [],
"stepDetails": {},
"strategyMetadata": null,
"executionInputConfigured": false,
"logBaseKey": "accountId:ACCOUNT_ID/orgId:ORG_ID/projectId:PROJECT_ID/pipelineId:output_variable/runSequence:1/level0:pipeline/level1:stages/level2:custom_stage/level3:spec/level4:execution/level5:steps/level6:ShellScript_2"
},
"nxZXM3IuQqmwNO-UGR_PBw": {
"uuid": "nxZXM3IuQqmwNO-UGR_PBw",
"setupId": "T9PYhM5bThaBTQYkD7IplA",
"name": "ShellScript_1",
"identifier": "ShellScript_1",
"baseFqn": "pipeline.stages.custom_stage.spec.execution.steps.ShellScript_1",
"outcomes": {
"output": {
"outputVariables": {
"output1": "",
"output2": ""
}
}
},
"stepParameters": {
"uuid": "T9PYhM5bThaBTQYkD7IplA",
"identifier": "ShellScript_1",
"name": "ShellScript_1",
"timeout": "10m",
"type": "ShellScript",
"spec": {
"outputVariables": {
"output1": "hello",
"output2": "helloworld"
},
"environmentVariables": {},
"shell": "Bash",
"source": {
"uuid": "Dngv_Yz8Q26VhUiGoXbu1Q",
"type": "Inline",
"spec": {
"script": "echo hellp"
}
},
"executionTarget": {}
}
},
"startTs": 1738237068060,
"endTs": 1738237071106,
"stepType": "ShellScript",
"status": "Success",
"failureInfo": {
"message": "",
"failureTypeList": [],
"responseMessages": []
},
"skipInfo": null,
"nodeRunInfo": {
"whenCondition": "<+OnStageSuccess>",
"evaluatedCondition": true,
"expressions": []
},
"retryNodeMetadata": null,
"executableResponses": [
{
"task": {
"taskId": "Xr7qqhYvQJW1A5ONlZP6cA-DEL",
"taskCategory": "DELEGATE_TASK_V2",
"logKeys": [
"accountId:ACCOUNT_ID/orgId:ORG_ID/projectId:PROJECT_ID/pipelineId:output_variable/runSequence:1/level0:pipeline/level1:stages/level2:custom_stage/level3:spec/level4:execution/level5:steps/level6:ShellScript_1-commandUnit:Execute"
],
"units": [],
"taskName": "SHELL_SCRIPT_TASK_NG"
}
}
],
"unitProgresses": [
{
"unitName": "Execute",
"status": "SUCCESS",
"startTime": "1738237069178",
"endTime": "1738237069186"
}
],
"progressData": {
"unitProgresses": [
{
"unitName": "Execute",
"status": "SUCCESS",
"startTime": "1738237069178",
"endTime": "1738237069186"
}
]
},
"delegateInfoList": [
{
"id": "TYzuSpCfSIqRTcI_1NXhsw",
"name": "cd-cie",
"taskId": "Xr7qqhYvQJW1A5ONlZP6cA-DEL",
"taskName": "SHELL_SCRIPT_TASK_NG"
}
],
"interruptHistories": [],
"stepDetails": {},
"strategyMetadata": null,
"executionInputConfigured": false,
"logBaseKey": "accountId:ACCOUNT_ID/orgId:ORG_ID/projectId:PROJECT_ID/pipelineId:output_variable/runSequence:1/level0:pipeline/level1:stages/level2:custom_stage/level3:spec/level4:execution/level5:steps/level6:ShellScript_1"
},
"HWbn_nVGSByRRgwtex3H2A": {
"uuid": "HWbn_nVGSByRRgwtex3H2A",
"setupId": "UPu3J3RHSX2Ho9JiaEHgaw",
"name": "custom_stage",
"identifier": "custom_stage",
"baseFqn": "pipeline.stages.custom_stage",
"outcomes": {},
"stepParameters": {
"uuid": "UPu3J3RHSX2Ho9JiaEHgaw",
"identifier": "custom_stage",
"name": "custom_stage",
"description": "",
"variables": {},
"tags": {},
"type": "Custom",
"specConfig": {
"childNodeID": "UnUHvdf7RguBVTUWzRn47g"
},
"timeout": "35d"
},
"startTs": 1738237067731,
"endTs": 1738237075747,
"stepType": "CUSTOM_STAGE",
"status": "Success",
"failureInfo": {
"message": "",
"failureTypeList": [],
"responseMessages": []
},
"skipInfo": null,
"nodeRunInfo": {
"whenCondition": "<+OnPipelineSuccess>",
"evaluatedCondition": true,
"expressions": []
},
"retryNodeMetadata": null,
"executableResponses": [
{
"child": {
"childNodeId": "UnUHvdf7RguBVTUWzRn47g",
"logKeys": [],
"units": [],
"skip": false
}
}
],
"unitProgresses": [],
"progressData": {
"unitProgresses": []
},
"delegateInfoList": [],
"interruptHistories": [],
"stepDetails": {},
"strategyMetadata": null,
"executionInputConfigured": false,
"logBaseKey": "accountId:ACCOUNT_ID/orgId:ORG_ID/projectId:PROJECT_ID/pipelineId:output_variable/runSequence:1/level0:pipeline/level1:stages/level2:custom_stage"
},
"UGwyVIh2TwKo1Ff9ZWdiyA": {
"uuid": "UGwyVIh2TwKo1Ff9ZWdiyA",
"setupId": "eFx1JJDBTSG0KXToOZLW_Q",
"name": "Execution",
"identifier": "execution",
"baseFqn": "pipeline.stages.custom_stage.spec.execution",
"outcomes": {},
"stepParameters": {
"childNodeId": "eFx1JJDBTSG0KXToOZLW_Qsteps",
"logMessage": "Execution Element"
},
"startTs": 1738237067912,
"endTs": 1738237075453,
"stepType": "NG_SECTION_WITH_ROLLBACK_INFO",
"status": "Success",
"failureInfo": {
"message": "",
"failureTypeList": [],
"responseMessages": []
},
"skipInfo": null,
"nodeRunInfo": null,
"retryNodeMetadata": null,
"executableResponses": [
{
"child": {
"childNodeId": "eFx1JJDBTSG0KXToOZLW_Qsteps",
"logKeys": [],
"units": [],
"skip": false
}
}
],
"unitProgresses": [],
"progressData": {
"unitProgresses": []
},
"delegateInfoList": [],
"interruptHistories": [],
"stepDetails": {},
"strategyMetadata": null,
"executionInputConfigured": false,
"logBaseKey": "accountId:ACCOUNT_ID/orgId:ORG_ID/projectId:PROJECT_ID/pipelineId:output_variable/runSequence:1/level0:pipeline/level1:stages/level2:custom_stage/level3:spec/level4:execution"
}
},
"nodeAdjacencyListMap": {
"ovKqIaGkQo2iRsKWgtameg": {
"children": [],
"nextIds": []
},
"nxZXM3IuQqmwNO-UGR_PBw": {
"children": [],
"nextIds": [
"ovKqIaGkQo2iRsKWgtameg"
]
},
"HWbn_nVGSByRRgwtex3H2A": {
"children": [
"UGwyVIh2TwKo1Ff9ZWdiyA"
],
"nextIds": []
},
"UGwyVIh2TwKo1Ff9ZWdiyA": {
"children": [
"nxZXM3IuQqmwNO-UGR_PBw"
],
"nextIds": []
}
},
"executionMetadata": null,
"representationStrategy": "camelCase"
}
},
"metaData": null,
"correlationId": "7eafc0cb-411e-48e8-b1c7-4644ef7678e2"
}
Extracting Output Variables via Execution Graph API
You can extract output variables via Execution Graph response JSON using HTTP step and Shell script:- Here is a sample YAML :-
pipeline:
name: output_variable
identifier: output_variable
projectIdentifier: PROJECT_ID
orgIdentifier: ORG_ID
tags: {}
stages:
- stage:
name: custom_stage
identifier: custom_stage
description: ""
type: Custom
spec:
execution:
steps:
- step:
type: Http
name: Http_1
identifier: Http_1
spec:
url: https://app.harness.io/pipeline/api/pipelines/execution/subGraph/kC70LloTRcmoXkS5ffX4eg/HWbn_nVGSByRRgwtex3H2A?accountIdentifier=ACCOUNT_ID&orgIdentifier=ORG_ID&projectIdentifier=PROJECT_ID
method: GET
headers:
- key: x-api-key
value: PAT_TOKEN
- key: Content-Type
value: application/json
inputVariables: []
outputVariables:
- name: out_var
value: <+json.select(".data.executionGraph.nodeMap.nxZXM3IuQqmwNO-UGR_PBw.stepParameters.spec.outputVariables", httpResponseBody)>
type: String
timeout: 10s
- step:
type: ShellScript
name: ShellScript_1
identifier: ShellScript_1
spec:
shell: Bash
executionTarget: {}
source:
type: Inline
spec:
script: echo <+execution.steps.Http_1.output.outputVariables.out_var>
environmentVariables: []
outputVariables: []
timeout: 10m
tags: {}
You need to specify the specific step uuid if you want to extract output variables from a specific step, same can ne extracted from JSON.

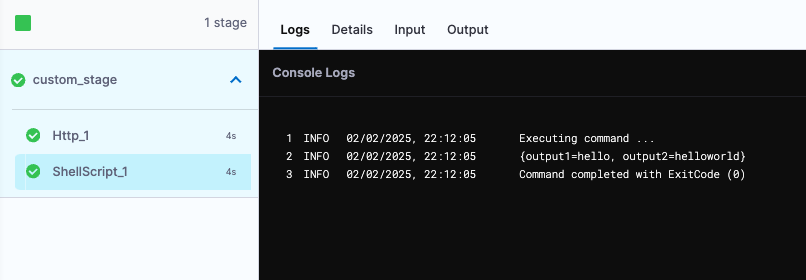

Output:-
