Enabling Tracing for Harness Leveraging OpenTelemetry

Enable Tracing in Harness Services​

The following Harness services(Platform, CD, CI, IACM, SSCA) support OpenTelemetry tracing:

  • access-control, harness-manager, ng-manager, platform-service, pipeline-service, ci-manager, sto-manager, cv-nextgen, iacm-manager, audit-event-streaming, debezium-service, template-service, idp-service, ssca-manager.

Common Global Configuration​

global:
  monitoring:
    otel:
      enabled: true
      collectorEndpoint: http://opentelemetry-collector.otel.svc.cluster.local:4317/

Overview of Tracing Architecture​

The tracing setup for Harness leverages OpenTelemetry to capture distributed traces across services, enabling deeper observability and troubleshooting.

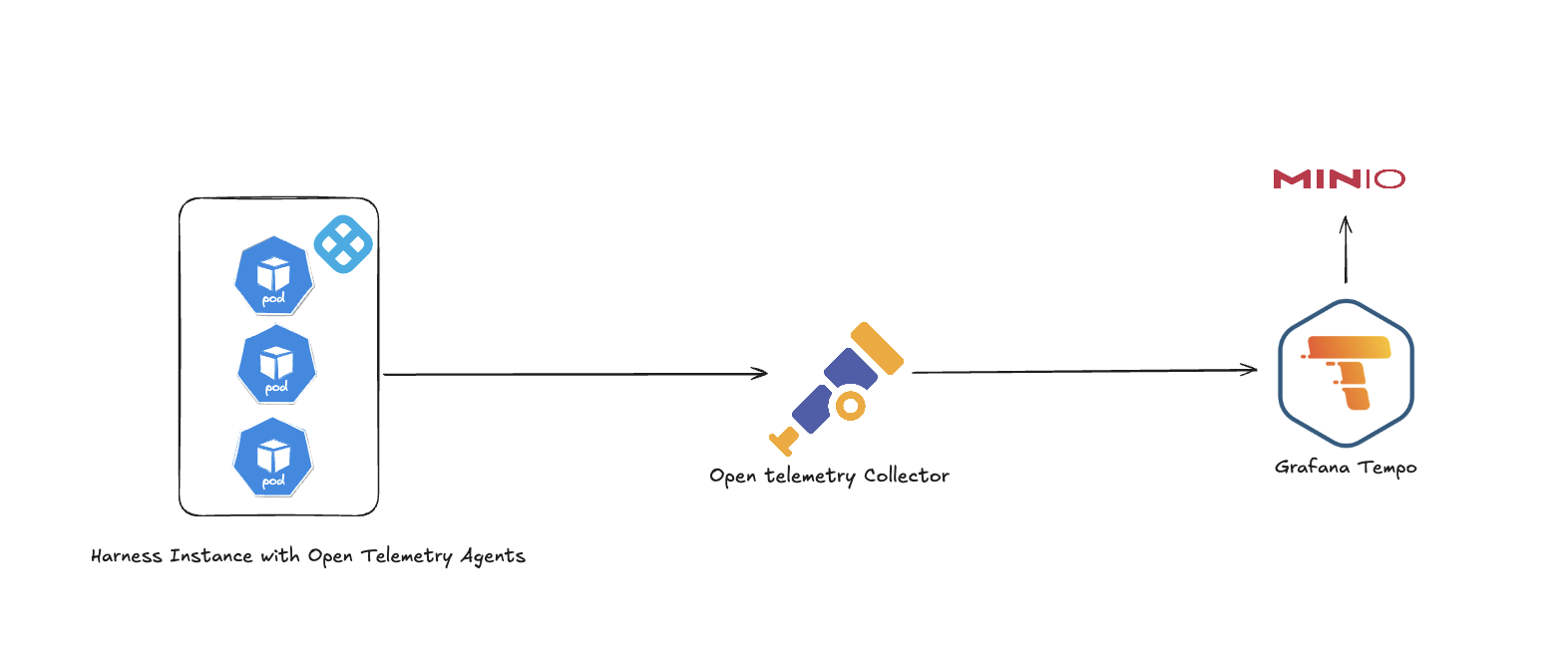

Tracing Arch Placeholder

Overview of Tracing Architecture for Harness Self-Managed Enterprise Edition.

The architecture follows this flow:

  1. Harness Instance with OpenTelemetry Agents: Each service in the Harness cluster is instrumented with OpenTelemetry agents to generate trace data.

  2. OpenTelemetry Collector: Trace data is sent to the collector, which processes, batches, and exports it to supported backends.

  3. Grafana Tempo: The collector forwards the traces to Grafana Tempo, a high-scale distributed tracing backend.

  4. MinIO: Tempo stores the trace data in an object store, such as MinIO, for durability and querying.

Install Grafana Tempo (Optional)​

Grafana Tempo is used to store and query trace data collected via OTel.

Step 1: Install MinIO for Trace Storage (Optional)​

  • Create a file named minio.yaml:

    fullnameOverride: "minio"
    mode: standalone
    provisioning:
      enabled: true
      buckets:
      - name: tempo
        region: us-east-1
        lifecycle:
          - id: 7dRetention
            expiry:
              days: 7
              nonconcurrentDays: 3
        tags:
          owner: tempo
    persistence:
      size: 20Gi
    auth:
      rootUser: admin
      rootPassword: "admin123"

  • Install MinIO:

    helm repo add bitnami https://charts.bitnami.com/bitnami
    helm install minio bitnami/minio -f minio.yaml -n tempo --create-namespace

Step 2: Install Tempo Distributed​

  • Create a file tempo.yaml with appropriate overrides.

  • Install Tempo:

    helm repo add grafana https://grafana.github.io/helm-charts
    helm install tempo-distributed grafana/tempo-distributed -f tempo.yaml -n tempo

Configure Grafana with Tempo as Trace Datasource​

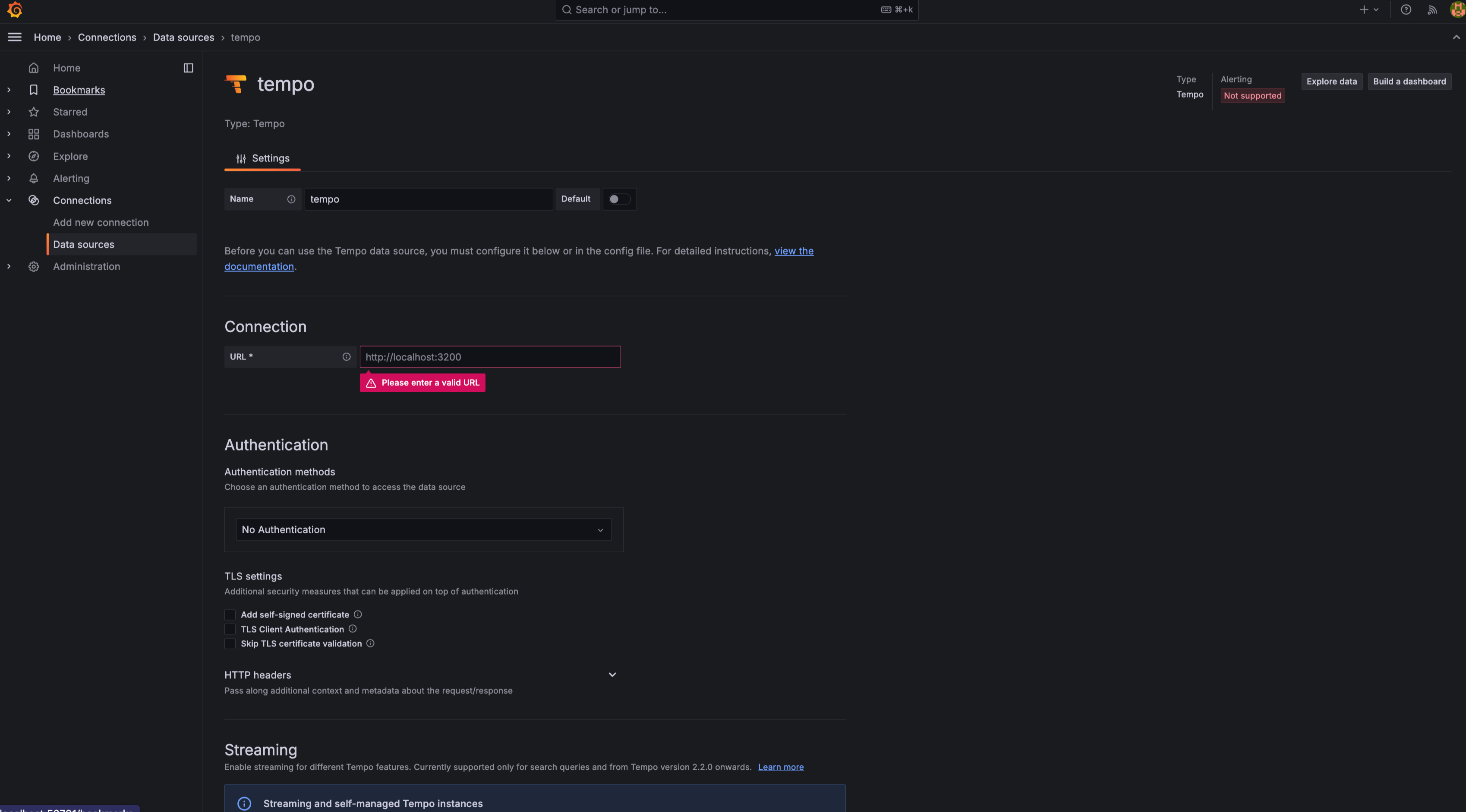

Configure-Tempo-In-Grafana

Configure Tempo in Grafana

In Grafana:

  • Go to Settings > Data Sources

  • Add a new Tempo data source

  • If everything is deployed in the same namespace, set the URL as:

    http://tempo-distributed-gateway.tempo.svc.cluster.local:80/

Install OpenTelemetry Collector (Optional)​

This step allows fine-grained control over trace ingestion, processing, and exporting.

Step 1: Create a Collector Override​

Create a file otel-collector.yaml and define the receivers, exporters, and pipelines.

Step 2: Install Collector​

  helm repo add open-telemetry https://open-telemetry.github.io/opentelemetry-helm-charts
  helm install opentelemetry-collector open-telemetry/opentelemetry-collector -f otel-collector.yaml -n otel --create-namespace

Visualize Traces in Grafana​

Once traces flow from Harness services through the OTel Collector and are stored in Tempo, you can use the Traces tab in Grafana to:

  • Query traces by service name
  • Explore duration, calls, and trace sizes
  • Debug performance bottlenecks and error spikes

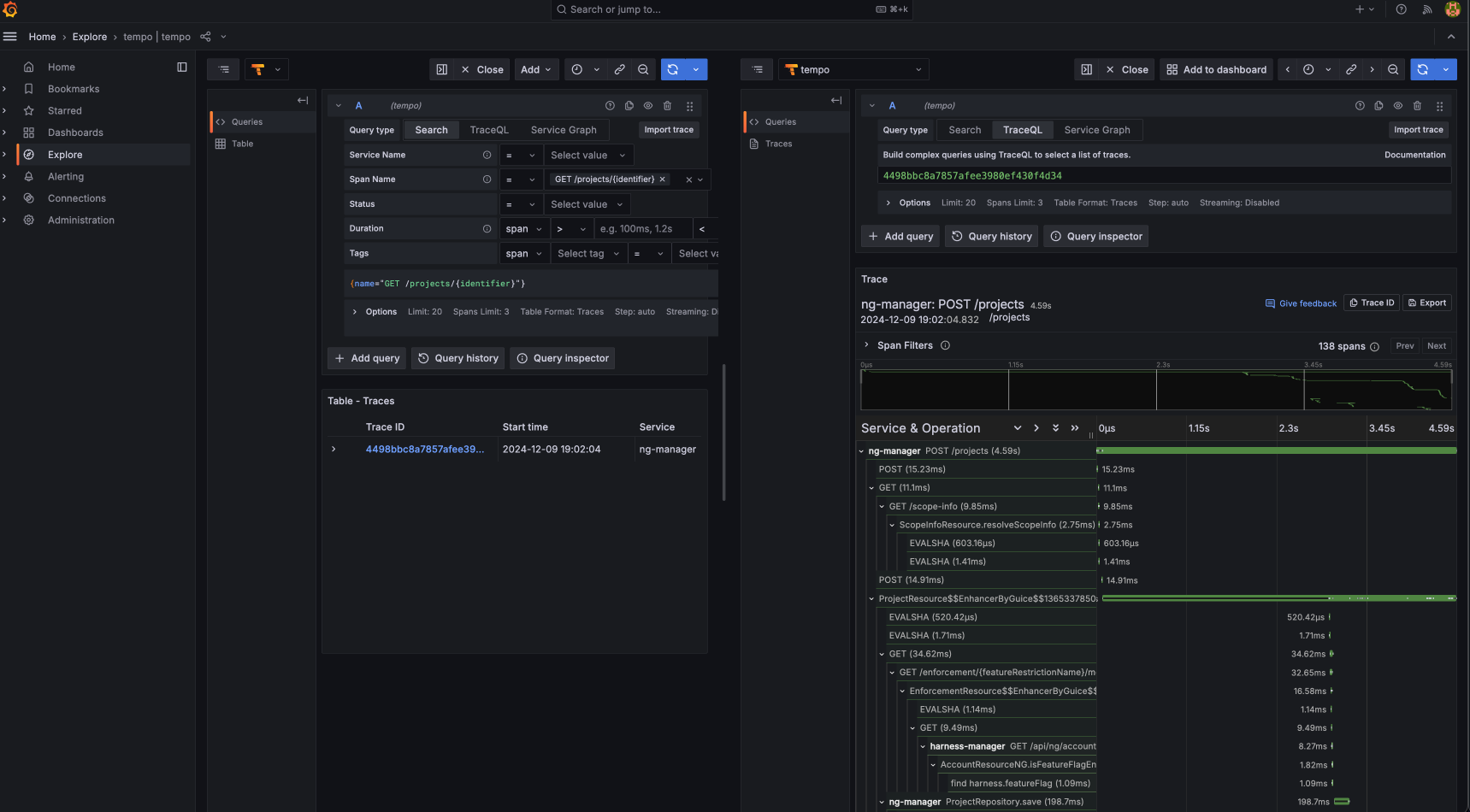

Example 1a

Example of browsing traces

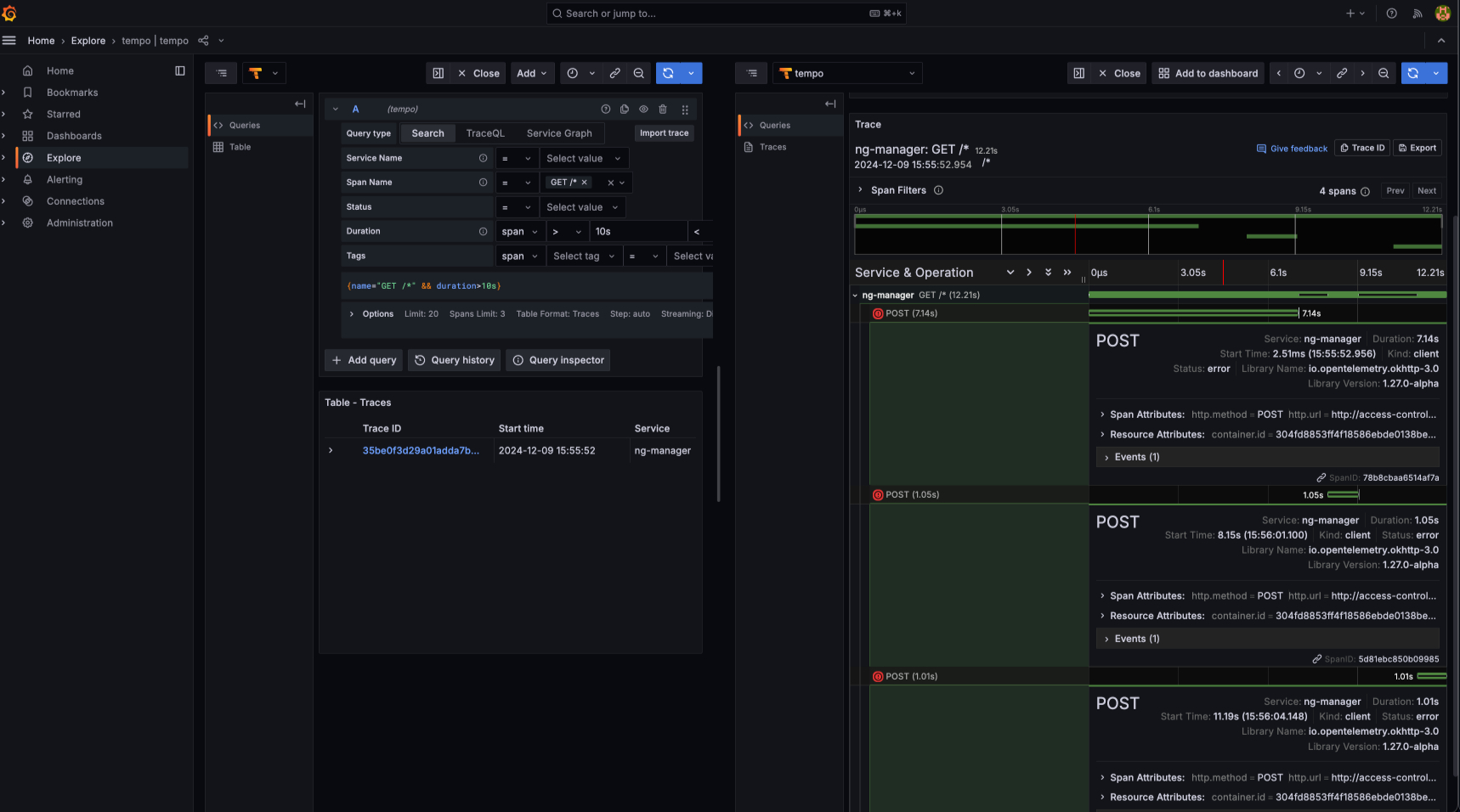

Example 1b

Example of browsing traces

Summary​

This setup provides end-to-end distributed tracing visibility into Harness using:

  • OpenTelemetry for instrumentation
  • Tempo for trace storage and query
  • Grafana for visualization

With minimal effort, you now gain deep insight into request flows across services, aiding performance debugging and reliability engineering.
